SA Nailbase

SA Nailbase

Product Description

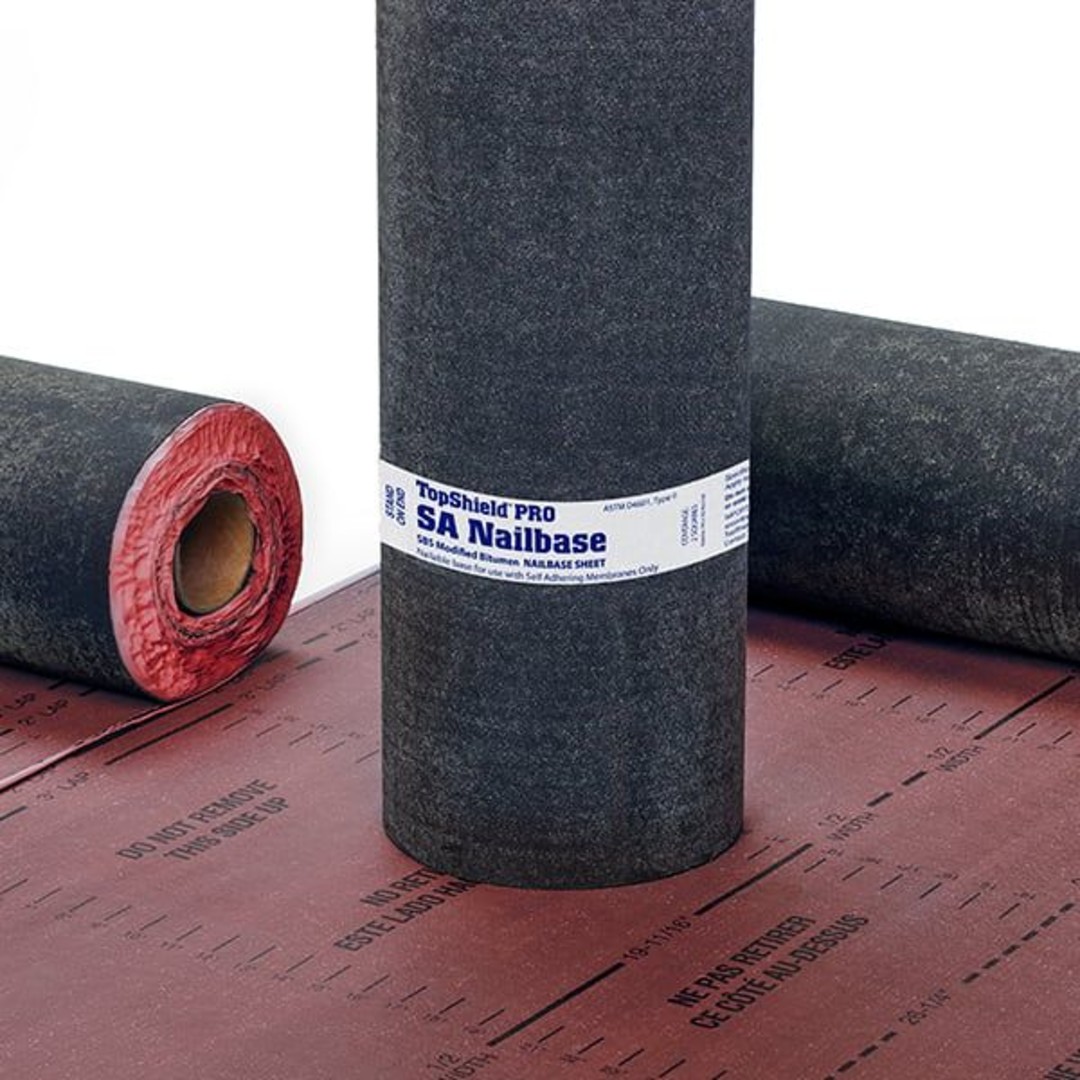

The TopShield® Pro SA NailBase is meticulously crafted on an exceptionally robust fiberglass-reinforced mat, featuring a coating of modified bitumen compound on the top surface. The top layer showcases a permanent maroon film, emphasizing its durability and unique characteristics. The back surface is thoughtfully finished with a mineral release agent, adding to the overall resilience of the product.

Benefits & Features
  • Robust fiberglass-reinforced mat that minimizes risk of fumes or burns
  • No torching required but approved to do so
  • No building occupant disturbance during installation
  • No mess or side lap bleed out
  • Reduced insurance requirements

    Specifications

    Specifications

    For Use On

    • Anchor sheet in self-adhering roofing systems. It is suitable for use in the construction of various types of membranes for both new construction and re-roofing over a variety of substrates. Permits complete mechanical attachment to substrates, preserving the integrity for future tear-offs and adding additional waterproofing performance capabilities to the overall system.


    Description: Item Code:
    SA Nailbase TSP654534
    PHYSICAL INFORMATION
    Top Surface: Permanent film
    Back Surface: Fine sand, release agent
    Reinforcement: Fiber glass mat
    Dimensions: 39-3/8" x 64' 6" (200 sq. ft.)
    Coverage: Two squares
    Thickness: Thickness: 1.5mm (60 mils)
    Applicable Standards & Approvals
    • Miami-Dade
    • FBC #32658.R1
    • Meets ASTM D4601, Type II and CGSB 37 GP-56M Type 2b, Class C, Grade 1.
    • TopShield® Pro SA NailBase is approved by Underwriters Laboratories for use in various Class A, B and C roof assemblies.
