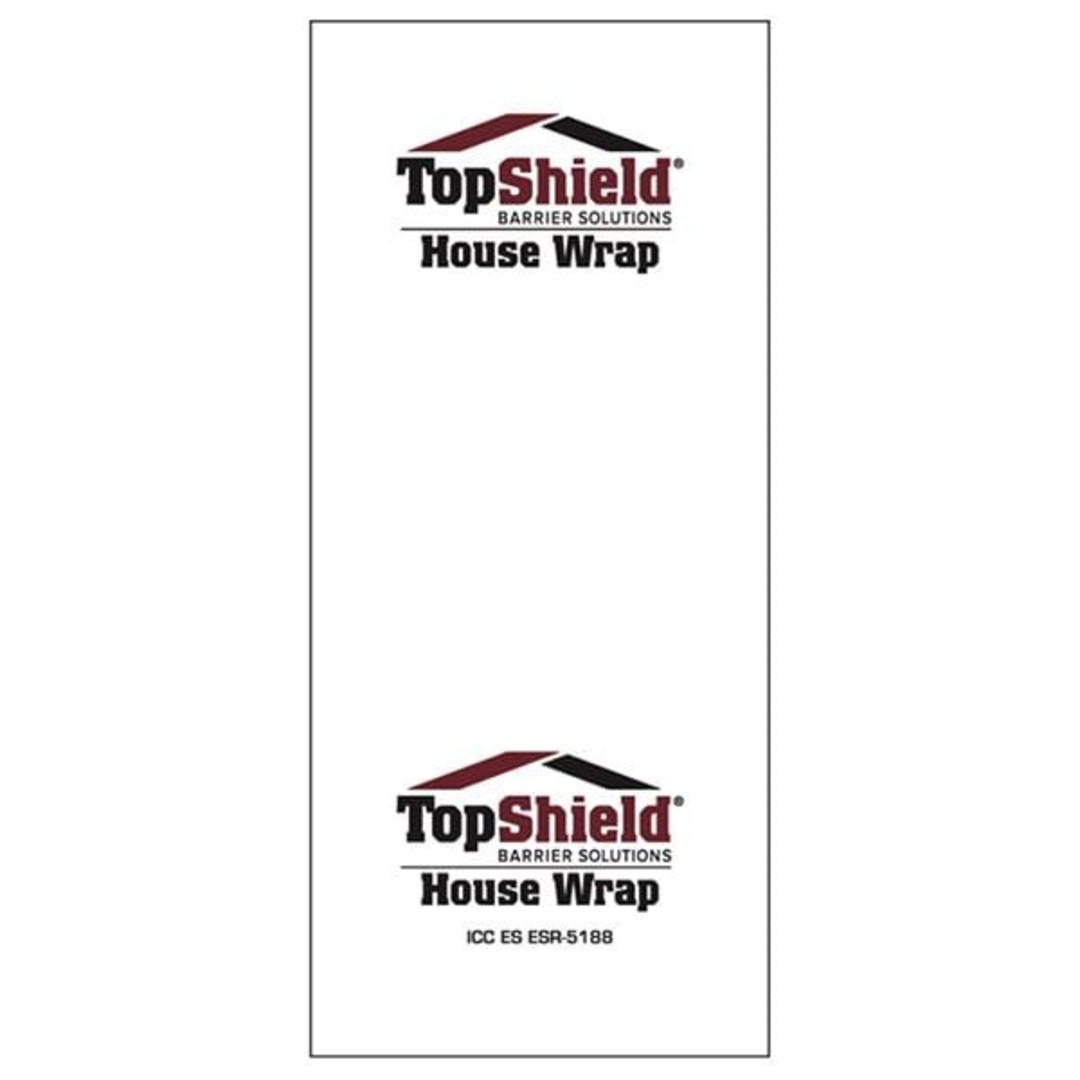

TopShield® HouseWrap
Product Description
TopShield® HouseWrap is a tear resistant woven and coated polypropylene weather resistant barrier that provides air and moisture protection. TopShield® HouseWrap is manufactured with great translucency for easier on stud installation without the need for nailing marks and offers tear strength that will withstand the rigors of the job site and weather elements.
Benefits & Features
- Provides protection from water infiltration but breathes allowing water vapor to escape.
- Light weight and somewhat translucent to allow for easy installation.
- UV resistant and can be left exposed for up to 6 months.
- Tear resistant reduces jobsite waste and blow-offs.
- Meets and exceeds all current building codes for water resistive barrier as well as an air barrier.
Specifications
Specifications
| Product Specifications: | Test Method: | ||
| Composition: | Woven Polypropylene | ||
| Weight per Roll: | 13.1 lbs. / MSF | ||
| Thickness: | 5.5 mils. | ||
| Tensile Strength: | MD | 79 | ASTM D5034 |
| CD | 51 | ||
| Tear Strength: | MD | 47.1 | ASTM D4533 |
| CD | 18.7 | ||
| Water Resistance: | Pass | ASTM D779 | |
| MVTR / Perms: | 9 Perms | ASTM E96 | |
| Fire Rating: | Class A | ASTM E84 | |
| Roll Size: | Rolls Per Pallet: |
| 9’ x 100’ | 50 |
| 9’ x 150’ | 45 |
| 9’ x 195’ | 40 |
| 10’ x 100’ | 50 |
| 10’ x 150’ | 45 |
| 10’ x 195’ | 40 |
| 54" x 100’ | 100 |
| 54" x 150’ | 90 |
| 54" x 195’ | 80 |
| 36" x 100’ | 150 |
| 36" x 150’ | 135 |
