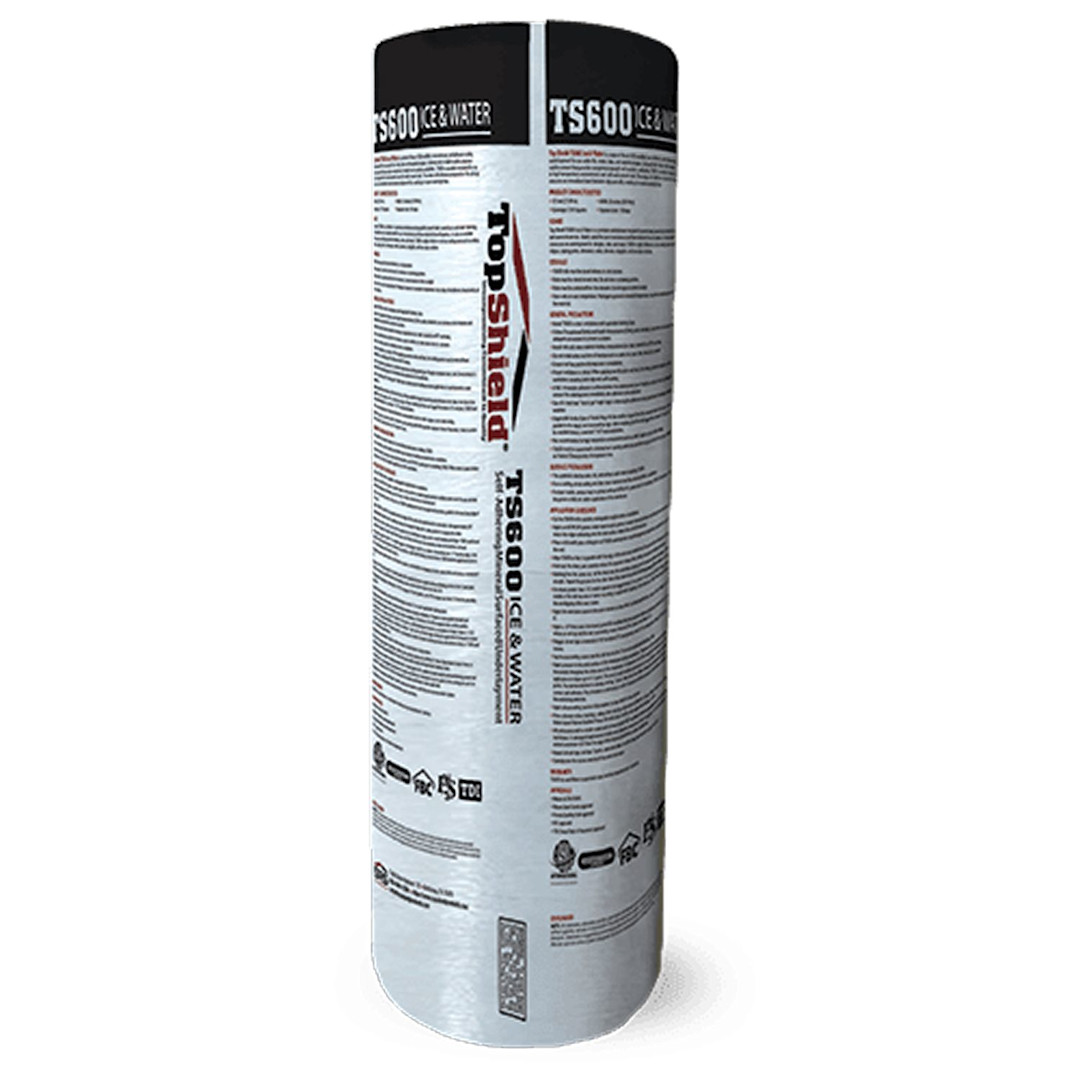

TS600 I&W HT
Product Description
TS600 I&W HT Underlayment is a state-of-the-art SBS modified, non-reinforced, self-adhesive roofing underlayment for use under tile, metal, slate, and asphalt shingles. Surfaced with a highly durable polyester reinforcement that provides exceptional strength and excellent walkability, TS600 I&W HT is specially formulated for use in high-temperature environments and self-seals around nails. The unique self-adhesive compound on the side lap ensures an immediate bond between adjacent rolls, resulting in instant watertight laps.
Benefits & Features
- Clean, easy to handle, self-adhering application
- Specially formulated SBS compound withstands temperatures to 260°F
- Self-sealing around nails preventing moisture penetration
- Self-adhesive coating on the side lap yields instant watertight laps
- Ultra violet (UV) resistant polyester fabric surface
- Approved for use with several foam adhesives for attachment of tiles
- Can withstand 10-tile high stacking
- High tensile and tear strengths
- Good walkability
- Enhanced skid resistance
- 360-day exposure allows for long term dry-in
- Adheres to a variety of substrates
- Membrane lays flat and resists wrinkling for ease of application
- Meets ASTM D1970
- Miami-Dade County approved
- Florida Building Code approved
- ICC approved
- TDI (Texas Dept. of Insurance) approved
- TS600 Ice & Water is warranted to be free from manufacturer’s defects.
- Fortified Roof™ qualified
Specifications
Specifications
For Use On
- Ideally suited for use in mechanical and foam-attached tile roof systems, it is also an excellent choice as an underlayment for shingles, slate, and metal.
- It is highly effective in critical roofing areas such as valleys, ridges, coping joints, chimneys, vents, dormers, skylights, and low-slope sections.
| PHYSICAL INFORMATION | UNIT | |
| Product code | TOPLB840055 | |
| Tensile Strength, MD & XMD | ASTM D1970 | 35 lbf/in |
| Elongation, Mod. Bit. Portion | ASTM D1970 | 100% min |
| Adhesion to Plywood @ 40°F | ASTM D1970 | 2 lb/ft of width |
| Adhesion to Plywood @ 75°F | ASTM D1970 | 20 lb/ft of width |
| Thermal Stability, Max. | ASTM D1970 | 0.1 in |
| Compound Stability | ASTM D1970 | 260°F |
| Flexibility Temperature | ASTM D1970 | -20°F |
| Tear Resistance, MD & XMD | ASTM D1970 | 30 lbf |
| Slip Resistance | ASTM D1970 | Pass |
| Moisture Vapor Permeance | ASTM D1970 | 0.05 US Perm or less |
| Sealability Around Nails | ASTM D1970 | Pass |
| Waterproof Integrity of Lap Seams | ASTM D1970 | Pass |
| Rolls per Pallet (label) | 20 | |
| Rolls Weight | 55 | lbs |
| Roll Diameter | 60 | mil (nominal) |
| Square Feet | 216 | sq ft |
| Roll Dimension | 36” x 72’ | |
