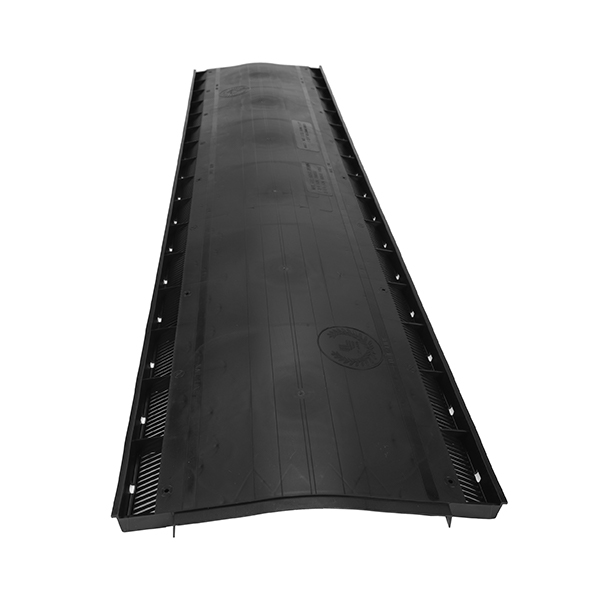

TSLOR9-4 Lo-OmniRidge
Product Line: TopShield®
Product Description: The TopShield® Lo-OmniRidge® Low profile ridge vent installs with hammer or nail gun.
Descripción del producto
Especificaciones
Documentación
Descripción del producto
TopShield's Lo-OmniRidge® Low profile ridge vent installs with hammer or nail gun.
Benefits & Features
- Internal aerodynamic curved baffles
- External perpendicular omni baffles
- Weatherproof underlapping joint
- Four drain holes per foot per side
- 11 square inches of net free area per linear foot
- External venturi baffle
- Pre-formed to 3/12 pitch
- Molded nail lines
- Molded centerline for fast and easy alignment
- Alignment tabs
- External water shield
- Slot width guide lines
- Patented molded-in fanfolded end plug fits all roof pitches
- Also available in Class A Fire Rating
- Lifetime Limited Warranty
Especificaciones
| Product: | Item Code: |
| TSLOR9-4 LO-OmniRidge | TOPTSLOR94 |
| TSLOR9-4 LO-OmniRidge w/ Nails | TOPTSLOR94N |
| TSLOR9-4 LO-OmniRidge w/ Nails w/ Screen | TOPTSLOR94SWN |
Product Specifications
| Model | Size | Roof Pitch | NFA (in.²) | Packaged |
| TSLOR9-4 | 9 in. x 4 ft. | 2/12 to 16/12 | 44 | 10 per Box |
Applicable Standards & Approvals
- Miami-Dade County Approved
