SA Nailbase
Product Line: TopShield® Pro

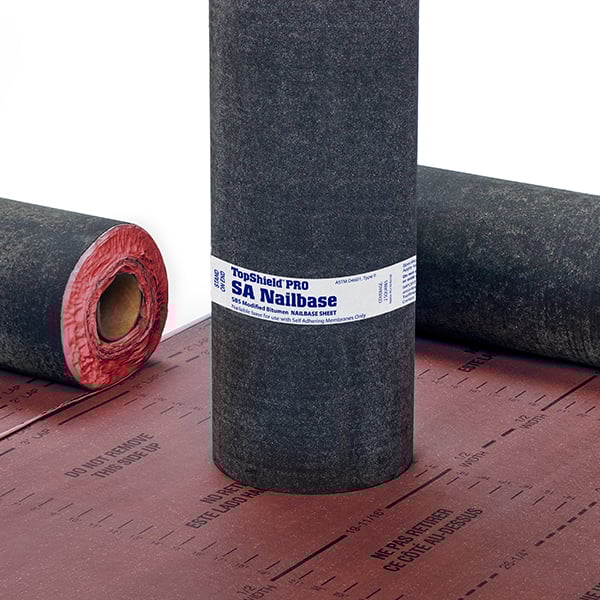

Product Description: The TopShield® Pro SA NailBase is meticulously crafted on an exceptionally robust fiberglass-reinforced mat, featuring a coating of modified bitumen compound on the top surface. The top layer showcases a permanent maroon film, emphasizing its durability and unique characteristics. The back surface is thoughtfully finished with a mineral release agent, adding to the overall resilience of the product.
Product Description
Specifications
Documentation
Product Description
Specifications
For Use On
- Anchor sheet in self-adhering roofing systems. It is suitable for use in the construction of various types of membranes for both new construction and re-roofing over a variety of substrates. Permits complete mechanical attachment to substrates, preserving the integrity for future tear-offs and adding additional waterproofing performance capabilities to the overall system.
| Description: | Item Code: |
| SA Nailbase | TSP654534 |
| PHYSICAL INFORMATION | |
| Top Surface: | Permanent film |
| Back Surface: | Fine sand, release agent |
| Reinforcement: | Fiber glass mat |
| Dimensions: | 39-3/8" x 64' 6" (200 sq. ft.) |
| Coverage: | Two squares |
| Thickness: | Thickness: 1.5mm (60 mils) |
Applicable Standards & Approvals
- Miami-Dade
- FBC #32658.R1
- Meets ASTM D4601, Type II and CGSB 37 GP-56M Type 2b, Class C, Grade 1.
- TopShield® Pro SA NailBase is approved by Underwriters Laboratories for use in various Class A, B and C roof assemblies.
Documentation
Technical Data Sheets
Brochures
Installation Instructions
Building Codes
