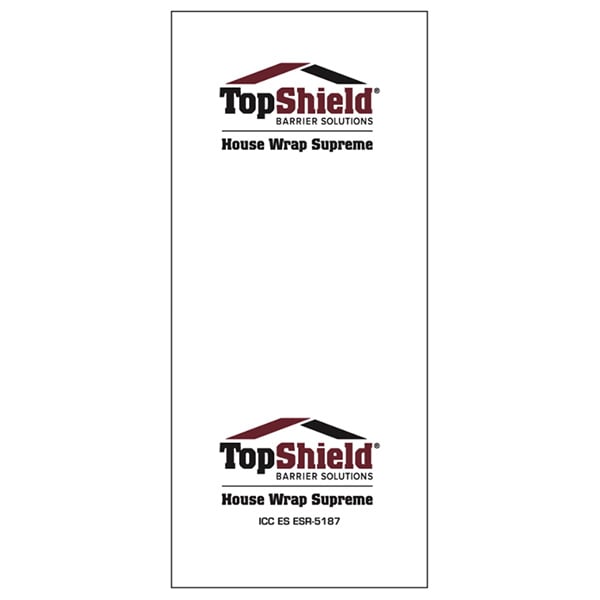

TopShield® HouseWrap-SUPREME
Product Line: TopShield®
Product Description: TopShield® HouseWrap-Supreme is the only choice for demanding applications to
protect from severe weather conditions and environments.
Product Description
Specifications
Documentation
Product Description
TopShield® HouseWrap-SUPREME is the only choice for demanding applications to protect from severe weather conditions and environments. Because of its one of a kind construction, TopShield® HouseWrap-SUPREME prevents the infiltration of air and water while still allowing for the escape of water vapor. But the most unique feature is the 360 degree drainage that no other wrap in the world can give. TopShield® HouseWrap-SUPREME can drain in EVERY direction, no matter the final wall cladding, wood, vinyl, metal, brick stone, cement sidings, stucco or ERIS. The incorporation of ALTA 360 makes TopShield® HouseWrap-SUPREME a one of a kind all weather protection layer for any type of construction with the assurance of quality and lifelong service. TopShield®HouseWrap-SUPREME has you covered in every direction!
Benefits & Features
- Provides protection from water infiltration but breathes allowing water vapor to escape.
- Light weight and somewhat translucent to allow for easy installation.
- UV resistant and can be left exposed for up to 6 months.
- Tear resistant reduces jobsite waste and blow-offs.
- Meets and exceeds all current building codes for water resistive barrier as well as an air barrier.
Specifications
| Product Specifications: | Test Method: | ||
| Air Penetration Resistance: | 0.00082 | ASTM E2178 (cfm/ft2@1.57 psf) | |
| >2500 | Gurley Hill (TAPPI-T460)(sec/100cm) | ||
| Water Vapor Transmission: | 385 | ASTM E96 Method A (g/m2/24 hrs) | |
| 55 | (perms) | ||
| 465 | ASTM E96 Method B (g/m2/24hrs) | ||
| 67 | (perms) | ||
| Water Penetration Resistance: | >300 | AATCC 127 (cm) | |
| Basis Weight: | 2.2 | TAPPI T-410 (oz/sq yd) | |
| Thickness: | 8 | ASTM D3776 (mils) | |
| Breaking Strength: | 30 | ASTM D882 (lb/in) MD | |
| 30 | ASTM D882 (lb/in) CD | ||
| Dry Tensile: | 45 | ASTM D504 (lb/in) MD | |
| 45 | ASTM D504 (lb/in) CD | ||
| Tear Resistance (Trapezoid): | 13.5 | ASTM D1117 (lbs) MD | |
| 12.5 | ASTM D1117 (lbs) CD | ||
| Drainage Efficiency: | >95% | ASTM E2273 | |
| >95% | ICC-ES AC 235 Section 4.5 | ||
| Surface Burning Characteristics: | 5 Class A | ASTM E84 Flame Spread Index | |
| 45 Class A | Smoke Develop Index | ||
| Ultra Violet Light Exposure: | 180 Days | ||
| Roll Size: | Rolls Per Pallet: |
| 36" x 100’ | 50 |
| 36" x 150’ | 45 |
| 54" x 100’ | 100 |
| 54" x 150’ | 90 |
| 9’ x 100’ | 50 |
| 9’ x 150’ | 45 |
| 9’ x 195’ | 40 |
| 10’ x 100’ | 50 |
| 10’ x 150’ | 45 |
| 10’ x 195’ | 40 |
