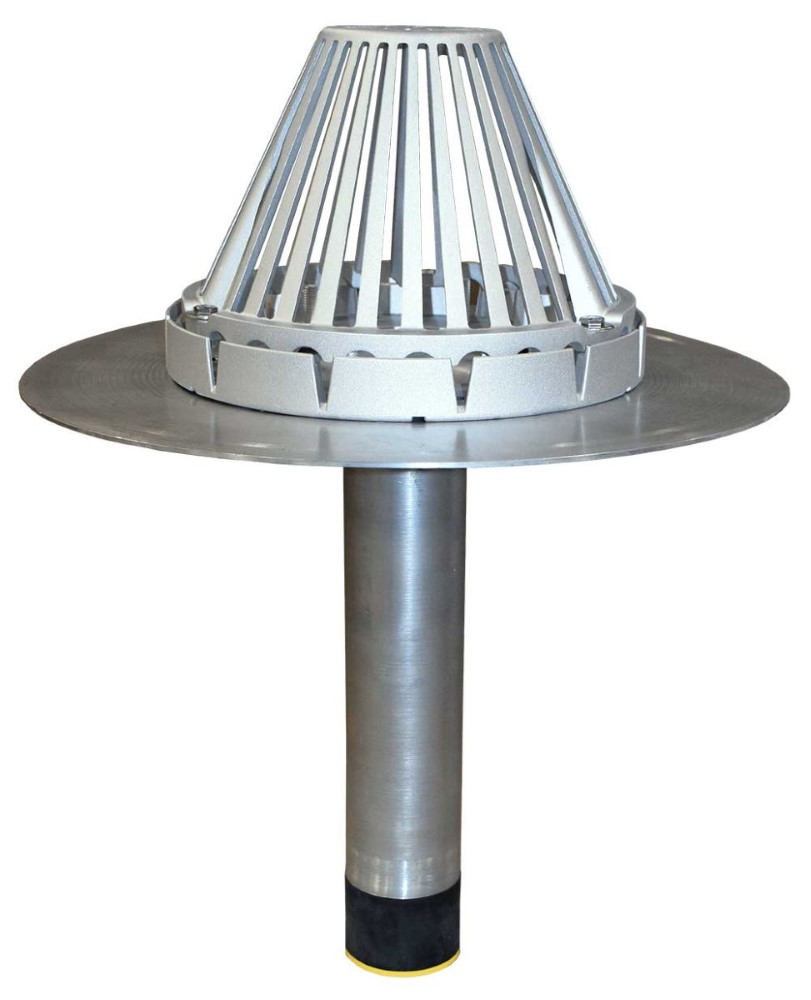

Retrofit Aluminator w/ TopShield Seal

Product Line: TopShield® Pro

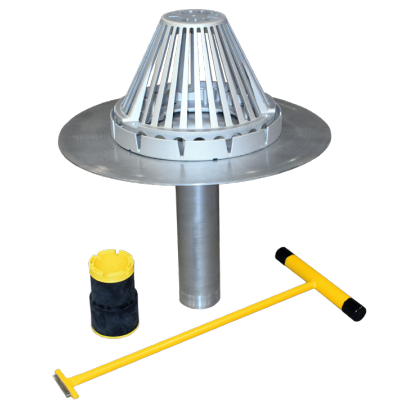

Product Description: The TopShield® Aluminator Retrofit Roof Drain is specifically crafted to efficiently replace existing roof drains in re-roofing applications. Built for durability, it features a heavy-duty aluminum construction, ensuring longevity and resilience. The mechanical TopShield® Seal provides superior protection against water backup, addressing crucial concerns in roofing systems.
Product Description
Specifications
Documentation

Product Description

The TopShield® Aluminator Retrofit Roof Drain is specifically crafted to efficiently replace existing roof drains in re-roofing applications. Built for durability, it features a heavy-duty aluminum construction, ensuring longevity and resilience. The mechanical TopShield® Seal provides superior protection against water backup, addressing crucial concerns in roofing systems.

Benefits & Features
    • Meets and exceeds ANSI/SPRI RD1 for water flow
    • Clamping ring underside is ribbed and embossed, enhancing the secure attachment of the membrane to the drain ring
    • Features a heavy-duty (0.125ʺ) aluminum construction
    • Strategically designed to force drainage, mitigating water flow swirling effects
    • Elevated strainer ring risers to increase water flow
    • Large stud diameter that enhances hardware strength
    • Cost-effective solutions with TPO- and PVC-coated flange options for contractors who prefer to heat weld to flange

    Available in
    • 3 inch, 4 inch, 5 inch and 6 inch
    • TPO & PVC Coated Flanges

    Specifications

    For Use On
    • Replace existing roof drains in a re-roofing application

    Size: Description: Item Code:
    3" Aluminator w/ TopShield® Seal - PVC TRURDBAL3CRPTSPV
    4" Aluminator w/ TopShield® Seal - PVC TRURDBAL4CRPTSPV
    5" Aluminator w/ TopShield® Seal - PVC TRURDBAL5CRPTSPV
    6" Aluminator w/ TopShield® Seal - PVC TRURDBAL6CRPTSPV
    3" Aluminator w/ TopShield® Seal - Aluminum TRURDBALUM3CRPTS
    4" Aluminator w/ TopShield® Seal - Aluminum TRURDBALUM4CRPTS
    5" Aluminator w/ TopShield® Seal - Aluminum TRURDBALUM5CRPTS
    6" Aluminator w/ TopShield® Seal - Aluminum TRURDBALUM6CRPTS
    3" Aluminator w/ TopShield® Seal - TPO TRURDBAL3CRPTSTP
    4" Aluminator w/ TopShield® Seal - TPO TRURDBAL4CRPTSTP
    5" Aluminator w/ TopShield® Seal - TPO TRURDBAL5CRPTSTP
    6" Aluminator w/ TopShield® Seal - TPO TRURDBAL6CRPTSTP

    Applicable Standards & Approvals
    • Meets and exceeds ANSI/SPRI RD1 for water flow
    • ASME 112.6.4
