SA Cap
Product Line: TopShield® Pro

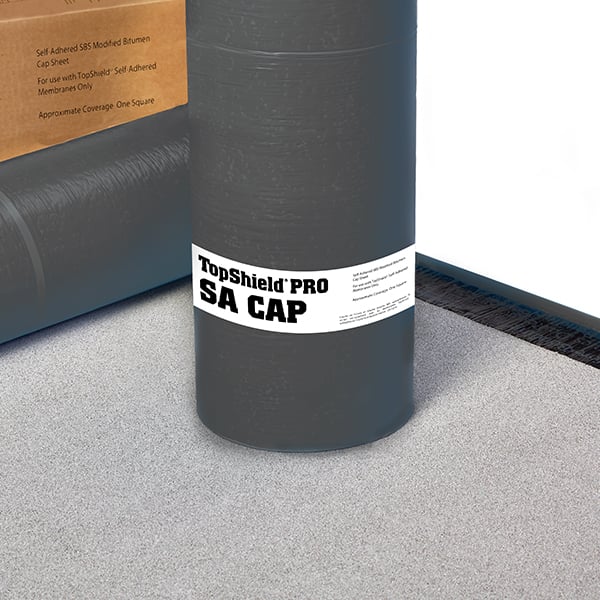

Product Description: The TopShield® Pro SA Cap is crafted from a durable, stress-resistant polyester mat, that boasts a high-performance composition and is coated with a top-notch modified bitumen compound. Its bottom surface is layered with a removable release film, while the top is adorned with mineral granules. This combination mat ensures exceptional tear and puncture resistance.
Product Description
Specifications
Documentation
Product Description
Specifications
For Use On
- TopShield® Pro SA Cap is designed for use as a cap membrane in multi-ply self-adhered systems. It is suitable for use in the construction of various roof membrane assemblies over a variety of substrates. It is intended for use over TopShield® Pro SA NailBase, & TopShield® Pro SA PlyBase.
| Description: | Item Code: |
| SA CAP White | TSP650435 |
| SA CAP Thunder Black | TSP650434 |
| SA CAP Weathered Wood | TSP650433 |
| SA CAP Russet Ridge | TSP650432 |
| SA CAP Gunmetal Gray | TSP650430 |
| SA CAP Roasted Chestnut | TSP653416 |
| SA CAP Sand | TSP679999 |
| PHYSICAL INFORMATION | |
| Top Surface: | Mineral - Variety of colors |
| Back Surface: | Removable Release Film |
| Reinforcement: | Polyester |
| Dimensions: | 39-3/8" x 32' 11" (100 sq. ft.) |
| Coverage: | One Square |
| Thickness: | 4.0mm (160 mils) |
| Initial solar reflectance: | 0.27 |
| Aged solar reflectance: | 0.24 |
| Thermal emittance: | 0.89 |
Applicable Standards & Approvals
- Miami-Dade
- FBC #32658.R1
- ASTM D6164, Grade G, Type I, D7505, D1970 and CGSB 37 GP-56M Type 1a,Class A, Grade 1, ICC-ES (ESR-1388).
Documentation
Brochures
Technical Data Sheets
Installation Instructions
Building Codes
